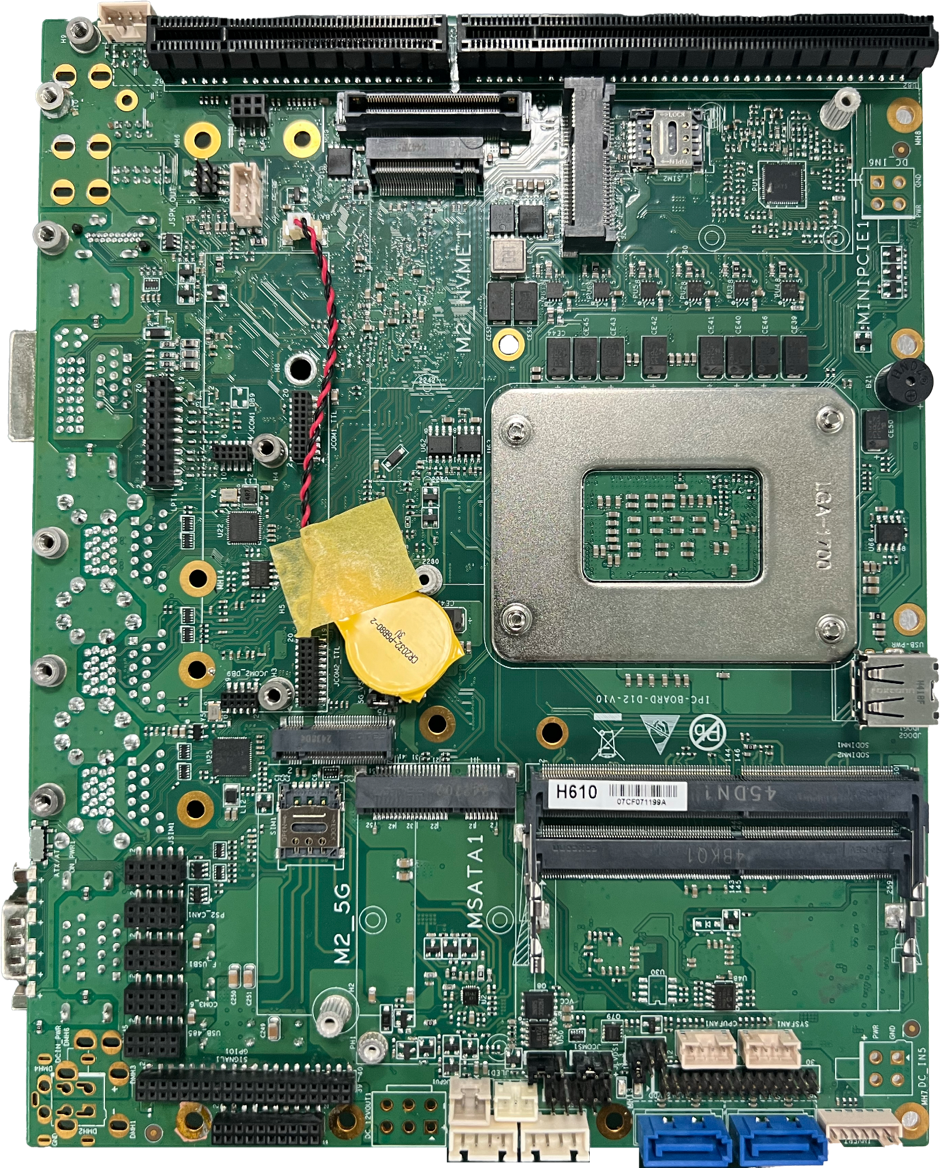

IPC-BOARD-D12

Key Features：
● Cutting-edge Intel® Alder Lake 12th–14th Gen processor support.
● Multiple storage interfaces: SATA, mSATA, M.2 NVMe.
● Comprehensive USB support (USB 3.2 Gen2, USB 3.0, USB 2.0).
● Six COM ports and dual Intel® LAN for versatile connectivity.
● Industrial-grade PCB with gold plating for long-term reliability.
● Wide DC input range for flexible installation.

More About This Product：

Category	Specification
CPU	Intel® Alder Lake 12th/13th/14th Gen Core™ i9/i7/i5/i3, Pentium®, Celeron®
Chipset	Intel® Q670/H610
BIOS	128Mb SPI Flash
Memory	1 × SO-DIMM DDR4 2666/2933/3200MHz, up to 64GB
Display	1 × HDMI external display, Intel® HD Graphics
Networking	2 × Gigabit LAN: Intel® i210AT, Intel® i219LM
Storage	2 × SATA, 1 × mSATA, 1 × M.2 M-Key SATA/NVMe 2280
USB	3 × USB 3.2 Gen2, 3 × USB 3.0, 4 × USB 2.0 onboard
COM	6 × COM (COM1/2 RS232/422/485 via BIOS, COM3–6 TTL)
Expansion Slots	1 × M.2 2230 E-Key (WiFi), 1 × M.2 3052 B-Key (4G/5G, SIM slot)
Audio	Realtek ALC897 HD codec, Line-out, Mic-in
Reserved	16 × GPIO, LPC/eSPI, SMBus, SPI, I2C
Watchdog	1–255 sec system reset
Power Input	DC 9–36V, lockable terminal (default), optional round threaded connector
Board Technology	Gold plating, 10-layer PCB, USB backflow protection, connectors: Foxconn, Lotus, UDE
Operating Systems	Windows 10/11, Linux
Environmental	Operating: -10°C to 60°C, Storage: -20°C to 85°C, Humidity: 5–95% non-condensing
Certifications	CE/FCC
