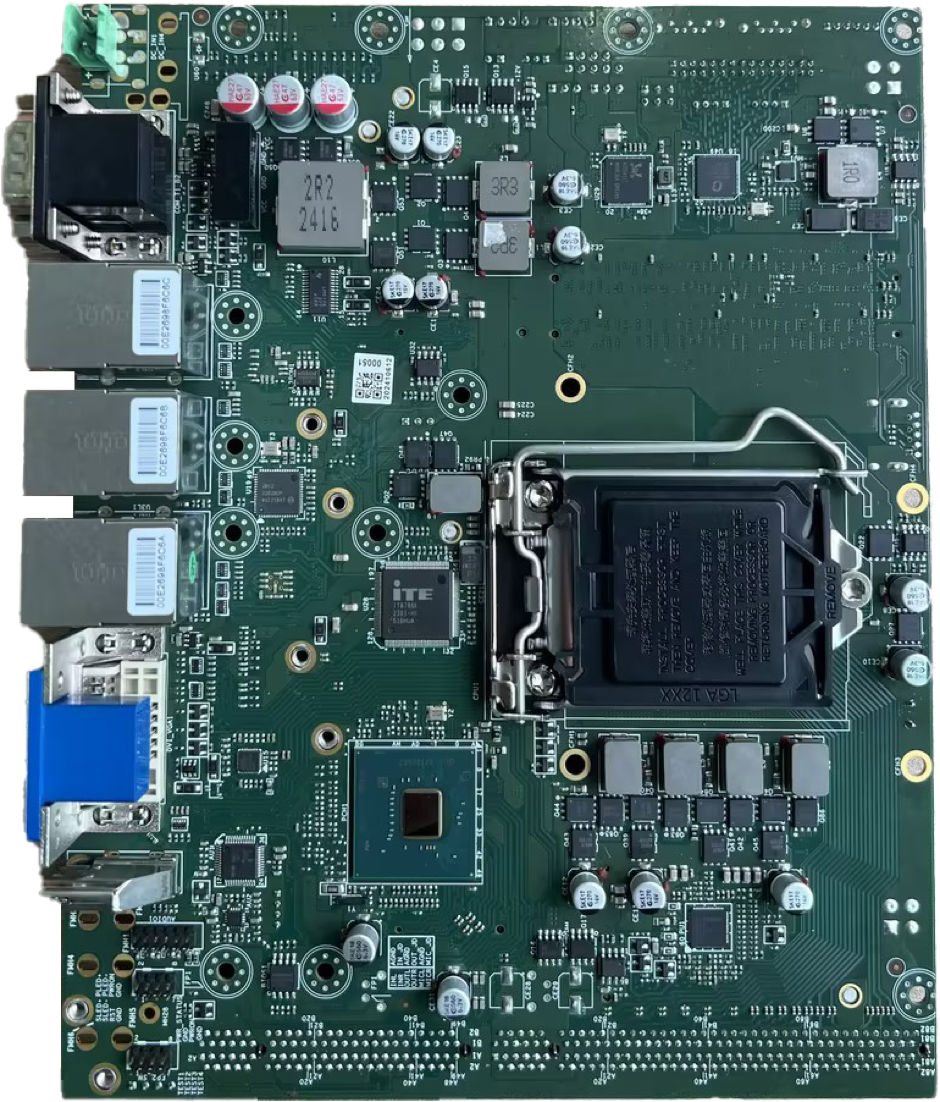

IPC-BOARD-D10

Key Features：
● Supports Intel® 10th/11th Gen Comet Lake processors.
● High-speed USB 3.2 Gen2 and multiple COM ports.
● Expandable storage including M.2 NVMe and 2.5” SSD/HDD.
● Dual Intel® Gigabit LAN controllerse.
● Rugged design with industrial PCB technology.
● Reliable operation across wide environmental ranges.

More About This Product：

Category	Specification
CPU	Intel® Comet Lake 10th/11th Gen Core™ i9/i7/i5/i3, Pentium®, Celeron®
Chipset	Intel® Q470/H420E
BIOS	128Mb SPI Flash
Memory	1 × SO-DIMM DDR4 2666/2933/3200MHz, up to 64GB
Display	1 × HDMI external display, Intel® HD Graphics
Networking	2 × Gigabit LAN: Intel® i210AT, Intel® i219LM
Storage	1 × M.2 2280 SATA/NVMe SSD, optional 1 × 2.5" HDD/SSD
USB	3 × USB 3.2 Gen2, 3 × USB 3.0, 4 × USB 2.0 onboard
COM	6 × COM (COM1/2 RS232/422/485 via BIOS, COM3–6 TTL)
Expansion Slots	1 × M.2 2230 E-Key (WiFi), 1 × M.2 3052 B-Key (4G/5G, SIM slot)
Audio	Realtek ALC897 HD codec, Line-out, Mic-in
Reserved	16 × GPIO, LPC/eSPI, SMBus, SPI, I2C
Watchdog	1–255 sec system reset
Power Input	DC 9–36V, lockable terminal (default), optional round threaded connector
Board Technology	Gold plating, 10-layer PCB, USB backflow protection, connectors: Foxconn, Lotus, UDE
Operating Systems	Windows 10/11, Linux
Environmental	Operating: -10°C to 60°C, Storage: -20°C to 85°C, Humidity: 5–95% non-condensing
Certifications	CE/FCC

IPC-BOARD-D10

Stability. Reliability. Intelligence.

Engineering for Touch Environments. Trusted in Factories, Railways, Data Centres.
