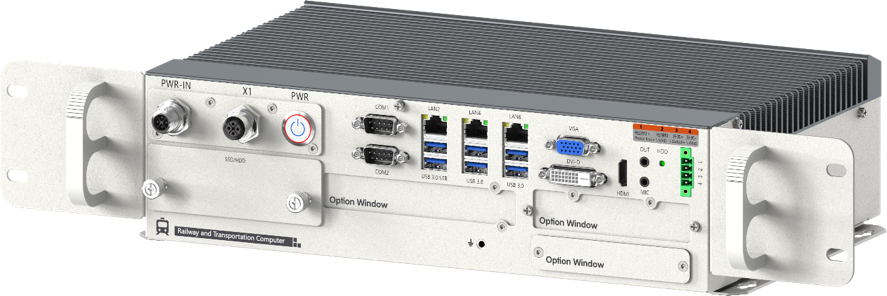

IPC-BOX-D6-RAILWAY

Key Features：
● Railway-grade power input (EN50155) with 110V DC support.
● Rugged M12 connectors for LAN, USB and COM.
● Fanless sealed chassis, optional external cooling for extended life.
● Supports Intel® 6th–9th Gen processors with high-performance chipsets.
● Designed for harsh railway environments: vibration, shock, temperature resistant.
● Flexible expansion for multi-NIC and GPIO requirements.

More About This Product：

Category	Specification
CPU	Intel® 6th/7th/8th/9th Gen Core™ i9/i7/i5/i3, Pentium®, Celeron® (LGA1151)Coffee Lake, Kaby Lake, Skylake
Chipset	Intel® H110/Q170
BIOS	64Mb SPI Flash
Memory	2 × DDR4 2133/2400/2666MHz, up to 64GB
Display	1 × VGA, 1 × DVI-D, 1 × HDMI
Networking	RJ45: Intel® i211, Intel® i219, Realtek 8125BG 2.5GM12: 2/3/4 × M12 (4-pin or 8-pin, D-code/X-code), options Intel® i210, i225V/LM, i226V/LM
Storage	1 × mSATA SSD, 1 × M.2 M-Key 2280 SATA/NVMe
USB	6 × USB 3.0, expandable including M12 USB
COM	2 × COM RS232/422/485 selectable, opto-isolated, expandable including M12 COM
Expansion Interfaces	Expandable COM, USB, SMBus, PS/2, LPT, 16/32 GPIO, multi-port NIC cards, M12 NIC cards
Expansion Slots	1 × mini-PCIe (full-size): WiFi/4G/MVB/custom modules1 × M.2 B-Key 3042/3052: 4G/5G modulesPCIe: x16, x4 (Q470), x1; PCI legacy options
Audio	Optional Realtek codec, Line-out, Mic-in
Watchdog	1–255 sec system reset
Power Input	Default DC 110V railway power (EN50155), optional 12V/24V/9–36V, M12 S-code connector (default), optional A-code/D-code, 4-pin output 12V/24V/110V
Operating Systems	Windows 7/8/10, Linux
Environmental	Operating: -10℃ ~ 60℃; Storage: -20℃ ~ 85℃ Humidity: 5% ~ 95% (non-condensing)Vibration (SSD): 5Grms; (HDD): 1GrmsShock (SSD): 50G / 11ms; (HDD): 20G / 11ms
Certifications	CE, FCC
