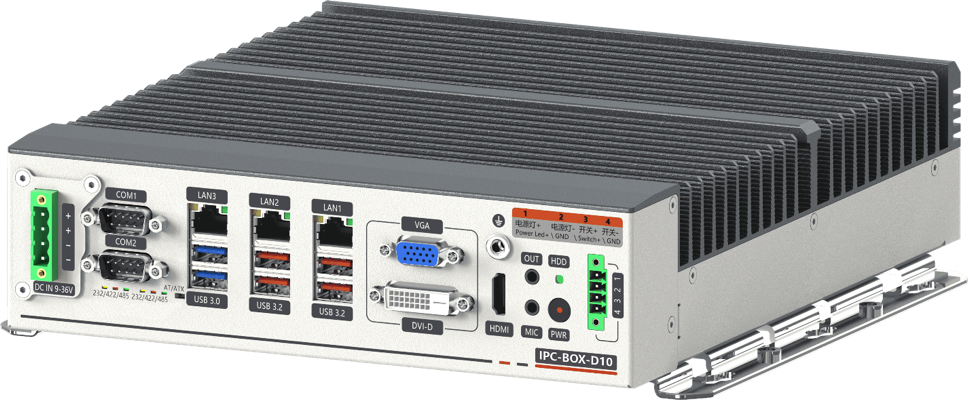

IPC-BOX-D10-X

Key Features：
● Supports Intel® 10th/11th Gen Core™ processors (Comet Lake / Rocket Lake) .
● Rich expansion capability with PCIe x16, x4, x1 and legacy PCI.
● Advanced networking with 2.5G Ethernet alongside Intel® Gigabit LAN.
● RAID support for secure and flexible data storage.
● Hi-Fi audio with 5.1 channel support.
● Fanless sealed chassis for dust-proof and maintenance-free operation.

More About This Product：

Category	Specification
CPU	Intel® Comet Lake 10th Gen / Rocket Lake 11th Gen Core™ i9/i7/i5/i3, Pentium®, Celeron® (LGA1200)
Chipset	Intel® Q470 / H420E
BIOS	64Mb SPI Flash
Memory	2 × DDR4 2933MHz SODIMM, up to 64GB
Display	1 × VGA, 1 × DVI-D, 1 × HDMI
Networking	1 × Intel® i210AT, 1 × Intel® i219LM, 1 × Intel® i226V 2.5G Ethernet
Storage	1 × mSATA, 1 × M.2 M-Key (2280, SATA/NVMe x4, Q470 only)2.5" or 3.5" HDD/SSD (optional)RAID 0/1 (Q470)
USB	4 × USB 3.2 Gen2, 2 × USB 3.0 Gen1, built-in USB 2.0 Type-A dongle socket (expandable)
COM	2 × COM (expandable; TTL/RS232/422/485; optional isolation)
GPIO	16 or 32 channels; standard or opto-isolated rugged GPIO; supports dry/wet contact, bidirectional isolation, withstand up to 80V; NPN/PNP selectable
Expansion Interfaces	COM, USB, SMBus, PS/2, LPT, 16/32-channel GPIO, multi-network vision cards, light source controllers
Expansion Slots	1 × mini-PCIe (full-size): WiFi/4G/MVB/custom modules1 × M.2 B-Key 3042/3052: 4G/5G modulesPCIe: x16, x4 (Q470), x1; PCI legacy options
Audio	Realtek ALC897, Line-out & Mic-in, Hi-Fi, supports 5.1 channel
Watchdog	1–255 sec system reset
Power Input	12V, 19V, 24V, 36V, 48V, 55V (selectable); lockable connectors
Operating Systems	Windows 10/11, Linux distributions, China OS (Kylin, etc.)
Cooling	Fanless sealed chassis, optional external temperature-controlled fan
Mounting	Horizontal or vertical (multi-slot versions)
Environmental	Operating: -10℃ ~ 60℃; Storage: -20℃ ~ 85℃ Humidity: 5% ~ 95% (non-condensing)Vibration (SSD): 5Grms; (HDD): 1GrmsShock (SSD): 50G / 11ms; (HDD): 20G / 11ms
Certifications	CE, FCC, CCC
