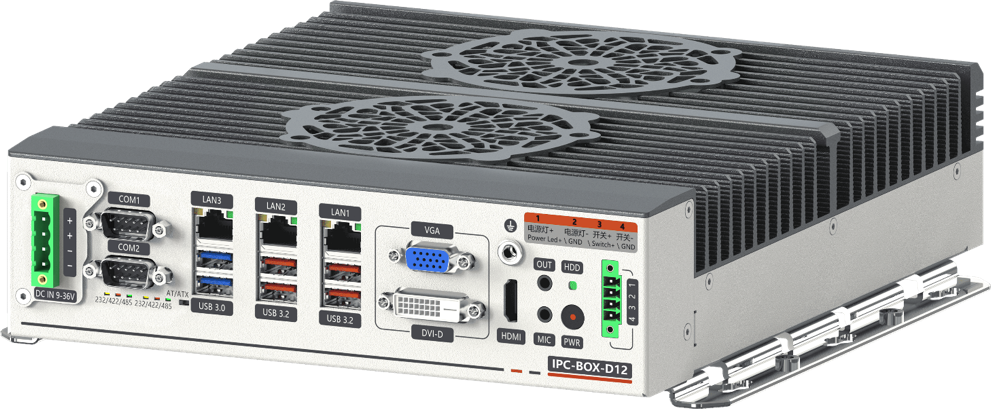

IPC-BOX-D12-X

Key Features：
● Latest Intel® 12th–14th Gen Core™ processors (Alder Lake / Raptor Lake).
● High-speed connectivity with 2.5G Ethernet and multiple Gigabit LAN ports.
● Expandable PCIe slots for vision, control or communication cards.
● Flexible storage with mSATA, M.2 NVMe and HDD/SSD options, RAID supported.
● Wide voltage input and fanless industrial-grade design.
● Robust environmental tolerance with CE, FCC, CCC certifications.

More About This Product：

Category	Specification
CPU	Intel® 12th/13th/14th Gen (Alder Lake / Raptor Lake, Intel® 7 process)Core™ i9/i7/i5/i3, Pentium®, Celeron® (LGA1700)
Chipset	Intel® H610 / Q670 / Z690
BIOS	64Mb SPI Flash
Memory	2 × DDR4 2666/2933/3200MHz SO-DIMM, up to 64GB
Display	1 × VGA, 1 × DVI-D, 1 × HDMI
Networking	1 × Intel® i210AT, 1 × Intel® i219LM, 1 × Intel® i226V 2.5G Ethernet
Storage	1 × mSATA, 1 × M.2 M-Key (2280, SATA/NVMe x4, Q670 only)2.5" or 3.5" HDD/SSD (optional)RAID 0/1 (Q670)
USB	3 × USB 3.2 Gen2, 3 × USB 3.0, built-in USB 2.0 Type-A dongle socket (expandable)
COM	2 × COM (expandable; TTL/RS232/422/485; optional isolation)
GPIO	16 or 32 channels; standard or opto-isolated rugged GPIO; supports dry/wet contact, bidirectional isolation, withstand up to 80V; NPN/PNP selectable
Expansion Interfaces	COM, USB, SMBus, PS/2, LPT, 16/32-channel GPIO, multi-network vision cards, light source controllers
Expansion Slots	1 × mini-PCIe (full-size): WiFi/4G/MVB/custom modules1 × M.2 B-Key 3042/3052: 4G/5G modulesPCIe: x16, x4 (Q670), x1; PCI legacy options
Audio	Realtek ALC987, Line-out & Mic-in
Watchdog	1–255 sec system reset
Power Input	12V, 19V, 24V, 36V, 48V, 55V (selectable); lockable connectors
Operating Systems	Windows 10/11, Linux distributions, China OS (Kylin, etc.)
Mounting	Horizontal or vertical (multi-slot versions)
Environmental	Operating: -10℃ ~ 60℃; Storage: -20℃ ~ 85℃ Humidity: 5% ~ 95% (non-condensing)Vibration (SSD): 5Grms; (HDD): 1GrmsShock (SSD): 50G / 11ms; (HDD): 20G / 11ms
Certifications	CE, FCC, CCC
