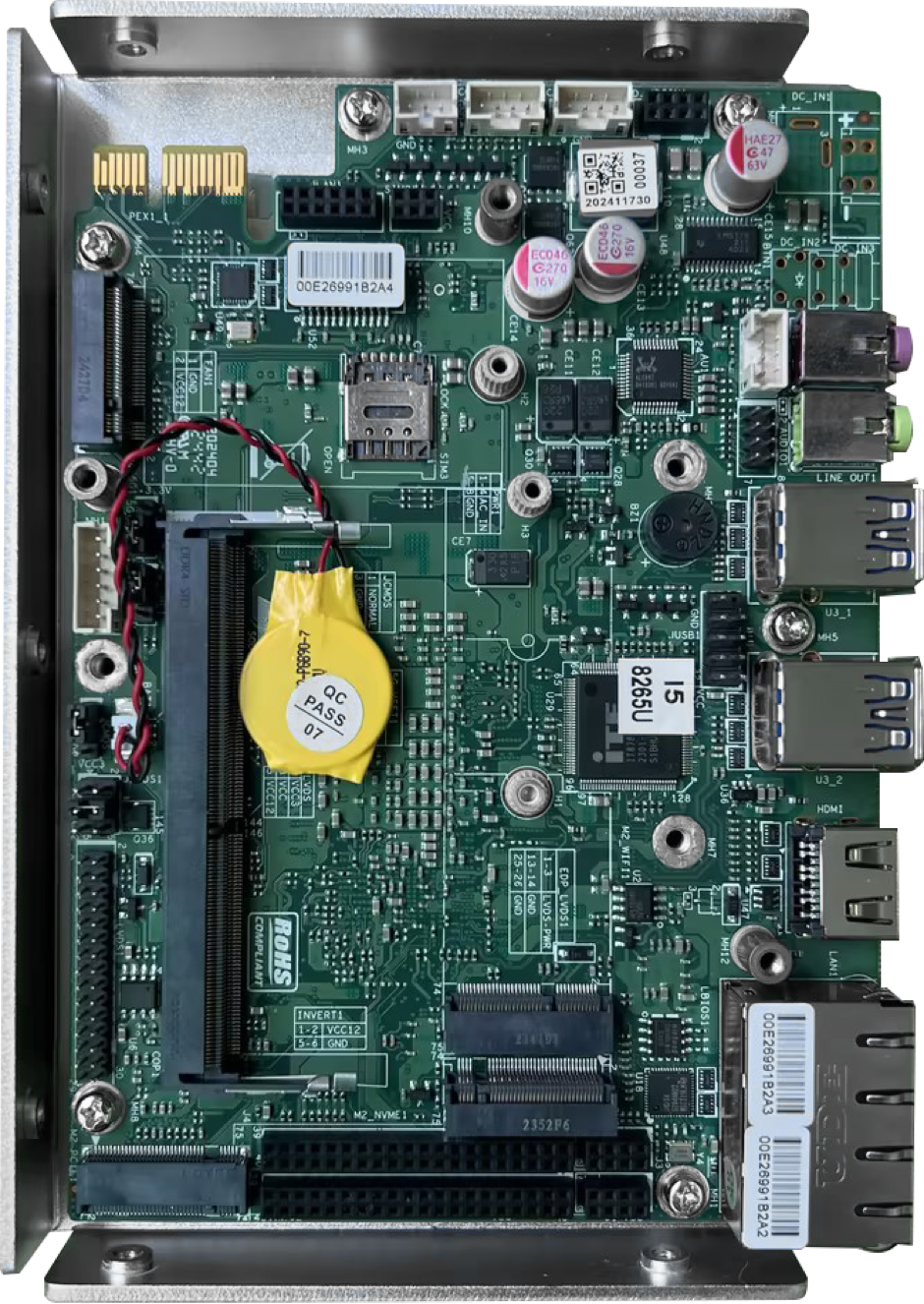

IPC-BOARD-U6 _RIVIDATA

Key Features：
● Compact industrial motherboard with Intel® Skylake/Kaby Lake processors.
● Extensive COM support (6 ports, RS232/422/485, TTL).
● Dual Gigabit LAN with Intel® controllers.
● Robust 10-layer PCB with gold plating for durability.
● Multiple expansion options: M.2 WiFi/4G/5G, GPIO, LPC/eSPI.
● Wide DC input range for industrial applications.

More About This Product：

Category	Specification
CPU	Intel® Skylake-U / Kaby Lake-U Core™ i7/i5/i3/Pentium®/Celeron®
Chipset	Intel® Skylake-U / Kaby Lake-U SoC
BIOS	AMI BIOS
Memory	1 × SO-DIMM DDR4 2666/2933/3200MHz, up to 32GB
Display	1 × HDMI external display, Intel® HD Graphics
Networking	2 × Gigabit LAN: Intel® i210AT, Intel® i219LM
Storage	1 × M.2 2280 SATA/NVMe SSD, optional 1 × 2.5" HDD/SSD
USB	4 × USB 3.0, 4 × USB 2.0 onboard
COM	6 × COM (COM1/2 RS232/422/485 via BIOS, COM3–6 TTL)
Expansion Slots	1 × M.2 2230 E-Key (WiFi), 1 × M.2 3052 B-Key (4G/5G, SIM slot)
Audio	Realtek ALC897 HD codec, Line-out, Mic-in
Reserved	16 × GPIO, LPC/eSPI, SMBus, SPI, I2C
Watchdog	1–255 sec system reset
Power Input	DC 9–36V, lockable terminal (default), optional round threaded connector
Board Technology	Gold plating, 10-layer PCB, USB backflow protection, connectors: Foxconn, Lotus, UDE
Operating Systems	Windows 10/11, Linux
Environmental	Operating: -10°C to 60°C, Storage: -20°C to 85°C, Humidity: 5–95% non-condensing
Certifications	CE/FCC
