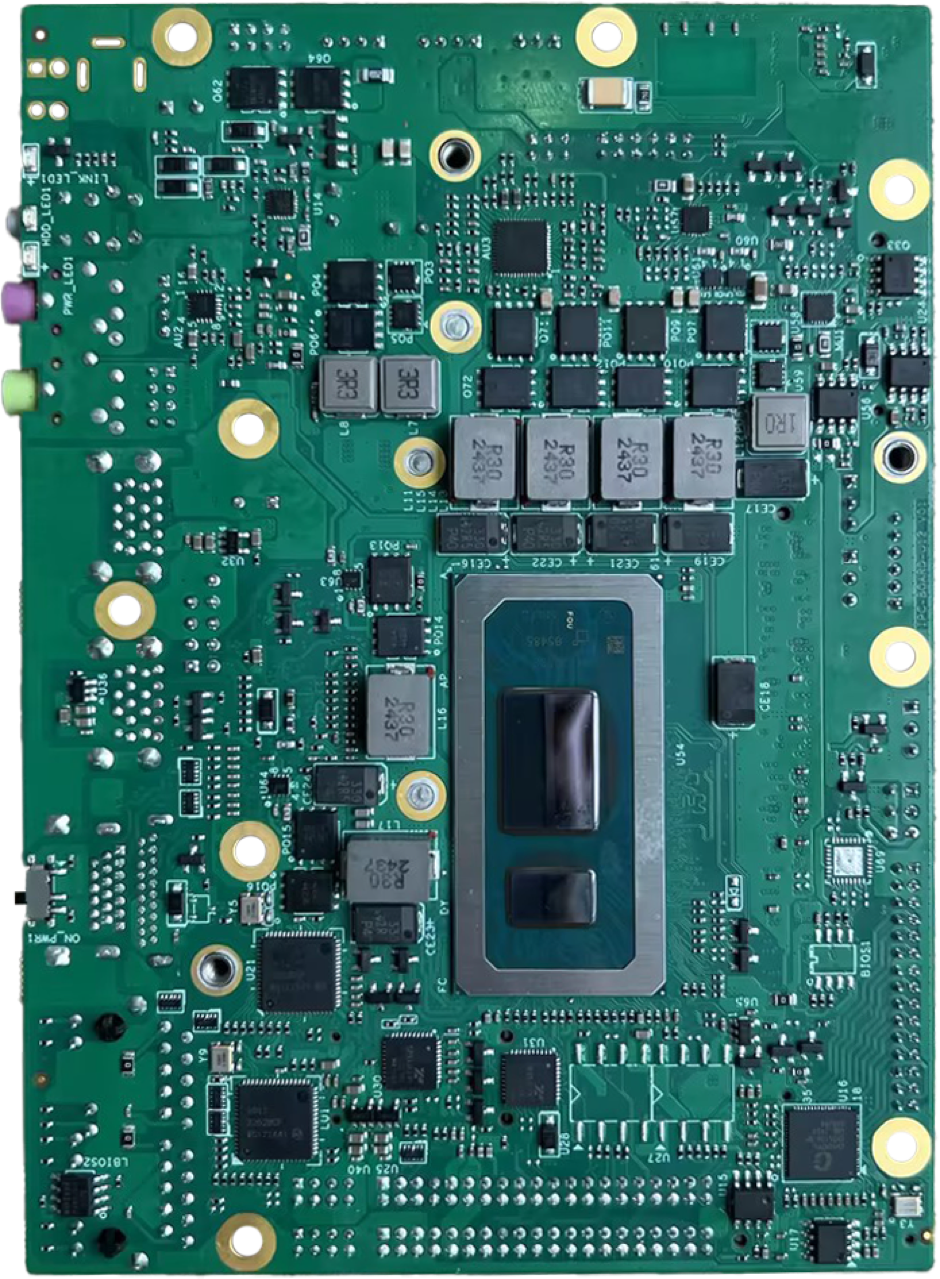

IPC-BOARD-U12

Key Features：
● Latest Intel® Alder Lake-U processors with improved performance-per-watt.
● Rich USB configuration: USB 3.2 Gen2, USB 3.0 and multiple USB 2.0.
● Six COM ports including RS232/422/485 and TTL support.
● Expandable via M.2 WiFi/4G/5G modules.
● Dual Intel® Gigabit LAN for reliable networking.
● Designed for industrial stability with 10-layer gold-plated PCB.

More About This Product：

Category	Specification
CPU	Intel® Alder Lake-U Core™ i7/i5/i3/Pentium®/Celeron®
Chipset	Intel® Alder Lake-U SoC
BIOS	AMI BIOS
Memory	1 × SO-DIMM DDR4 2666/2933/3200MHz, up to 32GB
Display	1 × HDMI external display, Intel® HD Graphics
Networking	2 × Gigabit LAN: Intel® i210AT, Intel® i219LM
Storage	1 × M.2 2280 SATA/NVMe SSD, optional 1 × 2.5" HDD/SSD
USB	2 × USB 3.2 Gen2, 2 × USB 3.0, 4 × USB 2.0 onboard
COM	6 × COM (COM1/2 RS232/422/485 via BIOS, COM3–6 TTL)
Expansion Slots	1 × M.2 2230 E-Key (WiFi), 1 × M.2 3052 B-Key (4G/5G, SIM slot)
Audio	Realtek ALC897 HD codec, Line-out, Mic-in
Reserved	16 × GPIO, LPC/eSPI, SMBus, SPI, I2C
Watchdog	1–255 sec system reset
Power Input	DC 9–36V, lockable terminal (default), optional round threaded connector
Board Technology	Gold plating, 10-layer PCB, USB backflow protection, connectors: Foxconn, Lotus, UDE
Operating Systems	Windows 10/11, Linux
Environmental	Operating: -10°C to 60°C, Storage: -20°C to 85°C, Humidity: 5–95% non-condensing
Certifications	CE/FCC

IPC-BOARD-U12

Stability. Reliability. Intelligence.

Engineering for Touch Environments. Trusted in Factories, Railways, Data Centres.
