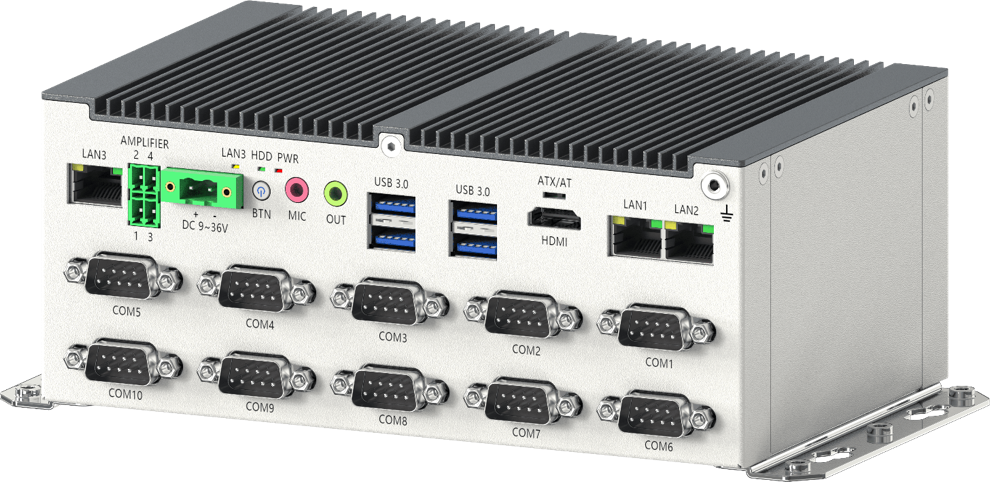

IPC-BOX-U-X _RIVIDATA

Key Features：
● Ultra-low voltage Intel® Core™ processors for power-efficient computing.
● Triple Gigabit LAN with Wake-on-LAN and PXE boot support.
● Compact fanless design with aluminium chassis for reliable performance.
● Wide DC power input (9–36V) for flexible industrial deployment.
● Expandable wireless options via M.2 (WiFi, 4G/5G).
● Extended operating temperature range for harsh environments.

More About This Product：

Category	Specification
CPU	Intel® Core™ i7/i5/i3/Pentium®/Celeron® ultra-low voltage, low-power processors
Chipset	Intel® SoC
BIOS	AMI BIOS
Memory	1 × SO-DIMM DDR4 2666/2933/3200MHz, up to 32GB
Display	HDMI external display, Intel® HD Graphics core, supports extended screen and synchronous/asynchronous touch operation
Networking	3 × Gigabit LAN: Intel® i219LM, Intel® i210AT, Realtek 8111H (onboard socket). Supports Wake-on-LAN and PXE boot. Expandable
Storage	1 × M.2 2280 SATA/NVMe SSD slot, optional 1 × 2.5" HDD/SSD
USB	4 × USB 3.0 (expandable with additional USB 2.0)
COM	2 × COM, selectable RS232/422/485 via BIOS, expandable
GPIO	Optional 16-channel GPIO
Expansion Slots	1 × M.2 2230 E-Key (WiFi), 1 × M.2 3052 B-Key (4G/5G, SIM slot)
Audio	Realtek ALC897 HD codec, Line-out, Mic-in
Watchdog	1–255 sec system reset
Power Input	DC 9–36V, round or terminal block lockable connectors
Operating Systems	Windows 7/10/11, Linux
Cooling	Fanless, aluminum chassis passive dissipation
Connectors	Reserved 3.5mm 2×2pin lockable terminal, default Remote SW and Power LED
Environmental	Operating: -20°C to 60°C, Humidity: 0–95%, Vibration (SSD): 5Grms, Shock (SSD): 50G
Certifications	CE/FCC

IPC-BOX-U-X

Stability. Reliability. Intelligence.

Engineering for Touch Environments. Trusted in Factories, Railways, Data Centres.
