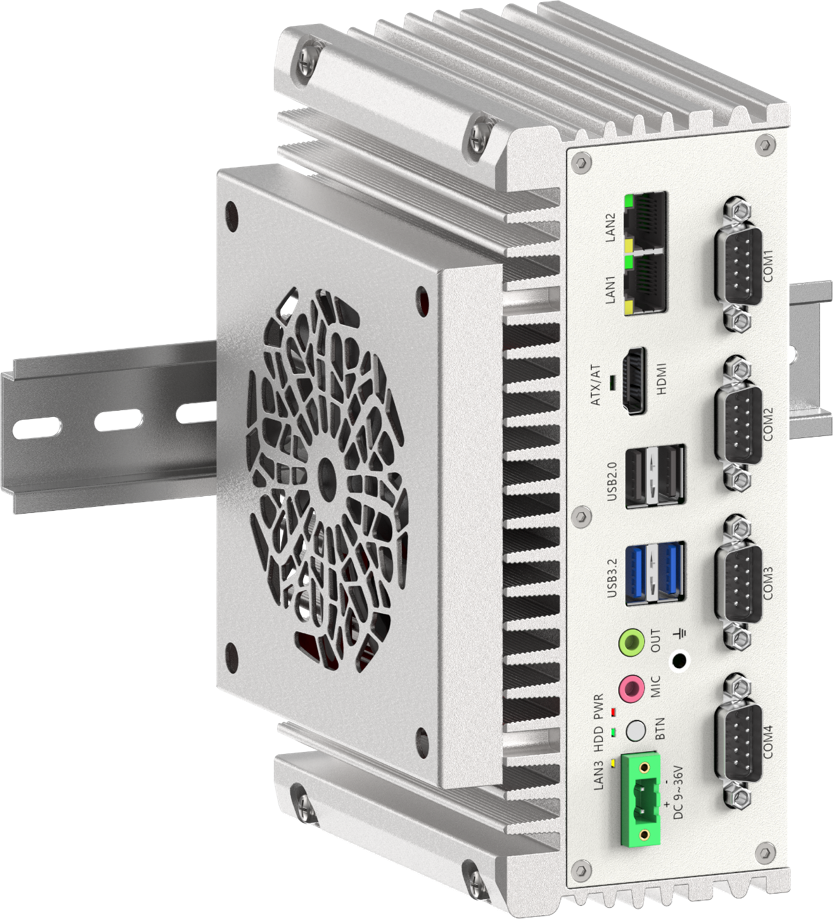

IPC-BOX-A-X _RIVIDATA

Key Features：
● Powered by Intel® Elkhart Lake Celeron® J6412 quad-core processor.
● Fanless aluminium chassis ensures quiet and durable operation.
● Multiple display outputs with Intel® HD Graphics.
● Triple LAN including Intel® i210 and Realtek options.
● Expandable storage with M.2 SSD and optional 2.5” HDD/SSD.
● Designed for wide temperature and voltage conditions.

More About This Product：

Category	Specification
CPU	Intel® Elkhart Lake Celeron® J6412, quad-core 2.0GHz
Chipset	Intel® Elkhart Lake J6412 SoC
BIOS	AMI BIOS
Memory	1 × SO-DIMM DDR4 2666/2933/3200MHz, up to 32GB
Display	HDMI external display, Intel® HD Graphics, supports extended screen and synchronous/asynchronous touch
Networking	3 × Gigabit LAN: Intel® i210AT, Realtek 8111H (LAN + onboard). Expandable
Storage	1 × M.2 2280 SATA/NVMe SSD slot, optional 1 × 2.5" HDD/SSD
USB	2 × USB 3.2, 2 × USB 2.0 (expandable)
COM	2 × COM, selectable RS232/422/485 via BIOS, expandable
GPIO	Optional 16-channel GPIO
Expansion Slots	1 × M.2 2230 E-Key (WiFi), 1 × M.2 3052 B-Key (4G/5G, SIM slot)
Audio	Realtek ALC897 HD codec, Line-out, Mic-in
Watchdog	1–255 sec system reset
Power Input	DC 9–36V, round or terminal block lockable connectors
Operating Systems	Windows 10/11, Linux
Cooling	Fanless, aluminum chassis passive dissipation
Connectors	Reserved 3.5mm 2×2pin lockable terminal, default Remote SW and Power LED
Environmental	Operating: -20°C to 60°C, Humidity: 0–95%, Vibration (SSD): 5Grms, Shock (SSD): 50G
Certifications	CE, FCC

IPC-BOX-A-X

Stability. Reliability. Intelligence.

Engineering for Touch Environments. Trusted in Factories, Railways, Data Centres.
